Características

Especificações

Type: Multi-Function Packaging Machine

Applicable Industries: Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops

Showroom Location: None

Condition: New

Function: FILLING, Labeling, Sealing

Application: Food, Commodity, Medical, Chemical, Machinery & Hardware

Packaging Type: Stand-up Pouch, Bags, Pouch

Packaging Material: Plastic

Automatic Grade: Automatic

Driven Type: Pneumatic

Voltage: 220V,50/60HZ,1KW

Warranty: 1 Year

Key Selling Points: Automatic

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: None

After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

Certificação: CE

Informação básica

Certificação: CE

Condições de Pagamento e Envio

Packaging Details: Standard export wooden case packaging

Supply Ability: 1800 Set/Sets per Year

Descrição de produto

Product process

Features

1.The machine stops running when the safety key interlock switch is pulled out

2.No bag prompting function

3.Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag

4.Positioning (anti-dropping) function of hopper

5.Warning function of cartridge heater fault

6.Warning function of cylinder fault

7.Warning function which air pressure is not up to standard

Specification

Item	200	300	430
Bag Material	Multilayer Composite Premade Bag （e.g.: PET/PE）
Bag size	100mm≤L≤200mm	100mm≤L≤300mm	100mm≤L≤430mm
Bag size		70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
Bag Type	3 Side Seal Bag, Stand-up Bag
Upgradable Bag Type	N/A	Gusset Bag, Zipper Bag, Flat Bottom Pouch （Need additional purchase of functional device）
Speed	0~26bags/min	0~15bags/min		0~15bags/min
Sealing Type	Plain weave	Straight grain, pitch is 1mm (Optional reticulate)		10g~3kg
Sealing Width	8mm	10mm（5--20mm can be customized）
Voltage	220V, Single-phase, 50/60HZ, 1KW	220V, Single-phase, 50/60HZ, 1.2KW		300mm
Air Pressure	0.65Mpa
Air Consumption	0.2m³/min	0.3m³/min
Air Consumption		Standard machine, no additional function
Body Dimension	10805351010mm	17706001230mm	17706001360mm
Packing Dimension	12406701320mm	18607101550mm	18607101650mm
Packing Dimension		Export non-fumigation wooden case

Optional Equipment

Auger filler

Applicable to all kinds of powder and mixed powder-like material weighing filling, such as: fertilizers, additives, flour, milk powder, coffee powder, washing powder and so on.

Screw conveyor

spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility

Rotary table

The conveyor is applicable for transferring bag from take off conveyor. 304SS materials , diameter 1200mm, we can make this machine according to your requirement.

Finish product conveyor

The machine can send the packaged finished pouch to the inspection device or to final packaging platform.

Packing Solution

The Filling System is Just for Your Reference.We Will Offer You the Best Solution According to Your Product Mobility, Viscosity,Density, Volume, Dimensions, Etc.

Powder Packing Solution —— Servo Screw Auger Filler Is Specialized for Power Filling Such as Nutrients Power, Seasoning Powder, Flour, Medicinal Powder, Etc.

Liquid Packing Solution —— Piston Pump Filller Is Specialized for Liquid Filling Such as Water, Juice, Laundry Detergent, Ketchup, Etc.

Solid Packing Solution —— Combination Multi-head Weigher Is Specialized for Solid Filling Such as Candy, Nuts, Pasta,

Dried Fruit, Vegetable, Etc.

Granule Pack Solution —— Volumetric Cup Fillier Is Specialized for Granule Filling Such as Chemial, Beans, Salt, Seasoning, Etc.

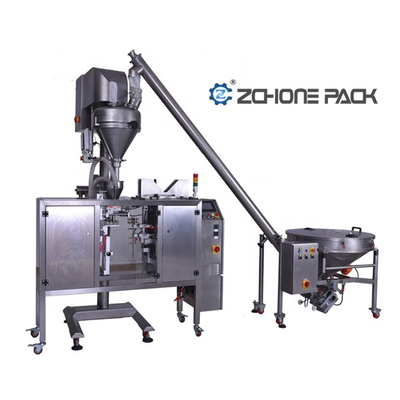

Automatic Food Snus Powder Packing Machine Coffee Milk Detergentwashing Spices Tea Packing Machine Powder

Auger filler

Screw conveyor

Rotary table

Finish product conveyor

The Filling System is Just for Your Reference.We Will Offer You the Best Solution According to Your Product Mobility, Viscosity,Density, Volume, Dimensions, Etc.
